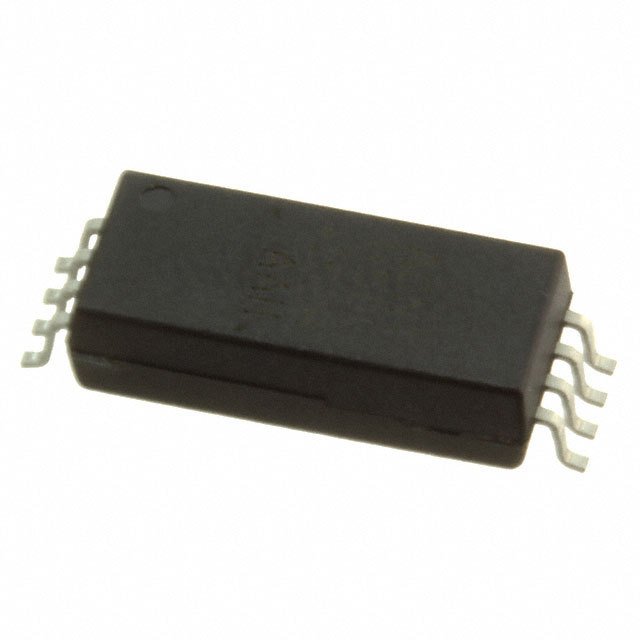

Image is for reference only , details as Specifications

HCPL-0531

Manufacturers:	Broadcom Limited
Product Category:	Optoisolators - Transistor, Photovoltaic Output
Data Sheet:	HCPL-0531
Description:	OPTOISO 3.75KV 2CH TRANS 8SOIC
RoHS status:	RoHS Compliant

Product Description
Customer Reviews

Attribute	Attribute Value
Manufacturer	Broadcom Limited
Product Category	Optoisolators - Transistor, Photovoltaic Output
Series	-
Packaging	Tube
Input Type	DC
Output Type	Transistor
Part Status	Active
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Number of Channels	2
Voltage - Isolation	3750Vrms
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Rise / Fall Time (Typ)	-
Voltage - Output (Max)	20V
Supplier Device Package	8-SO
Current - Output / Channel	8mA
Current Transfer Ratio (Max)	50% @ 16mA
Current Transfer Ratio (Min)	19% @ 16mA
Voltage - Forward (Vf) (Typ)	1.5V
Turn On / Turn Off Time (Typ)	200ns, 600ns
Current - DC Forward (If) (Max)	25mA
