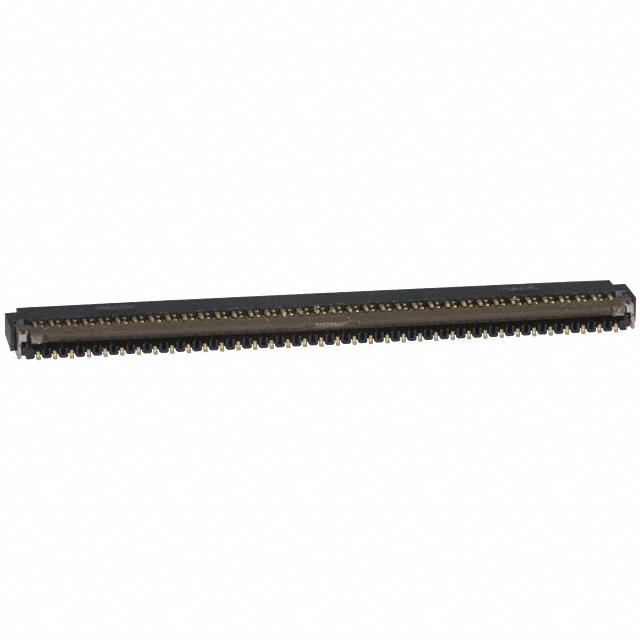

Image is for reference only , details as Specifications
FH26-71S-0.3SHW(10)
| Manufacturers: | Hirose Electric Co Ltd |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | FH26-71S-0.3SHW(10) |
| Description: | CONN FPC BOTTOM 71POS 0.30MM R/A |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.012" (0.30mm) |
| Series | FH26 |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Housing Color | Black |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Brown |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 30V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polyamide (PA), Nylon |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.039" (1.00mm) |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 71 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
New and Original electronic components FH26-71S-0.3SHW(10) from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 83 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
