MIXA81H1200EH

Manufacturers: IXYS
Product Category: Transistors - IGBTs - Modules
Data Sheet: MIXA81H1200EH
Description: IGBT MODULE 1200V 84A
RoHS status: RoHS Compliant
Attribute Attribute Value
Manufacturer IXYS
Product Category Transistors - IGBTs - Modules
Input Standard
Series -
IGBT Type PT
Part Status Active
Power - Max 390W
Configuration Full Bridge Inverter
Mounting Type Chassis Mount
NTC Thermistor No
Package / Case E3
Operating Temperature -40°C ~ 125°C (TJ)
Supplier Device Package E3
Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 77A
Current - Collector (Ic) (Max) 120A
Current - Collector Cutoff (Max) 200µA
Voltage - Collector Emitter Breakdown (Max) 1200V
New and Original electronic components MIXA81H1200EH from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. lanka micro cooperation

Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.

In Stock 60 pcs

Refrence Price ($) 1 pcs 100 pcs 500 pcs
$67.04 $65.70 $64.39
Minimum: 1

Request Quote

Fill out the below form and we will contact you as soon as possible

Bargain Finds

MWI35-12A7T
IXYS
$66.86
MWI25-12A7
IXYS
$66.66

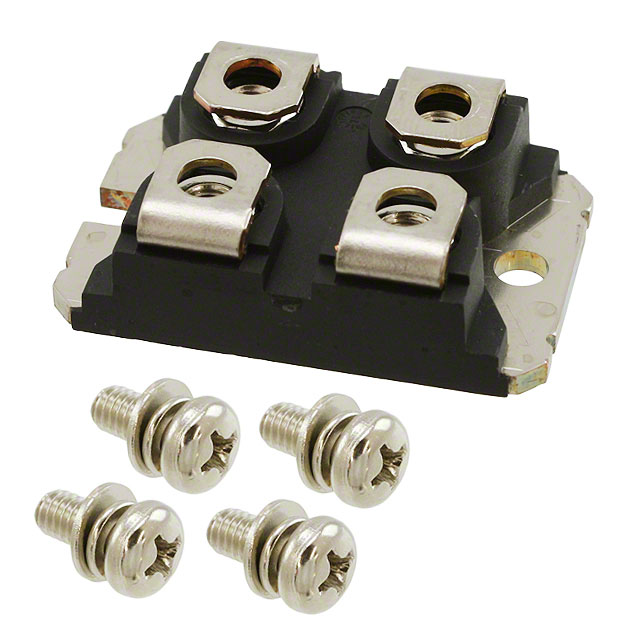

VS-GB90SA120U
