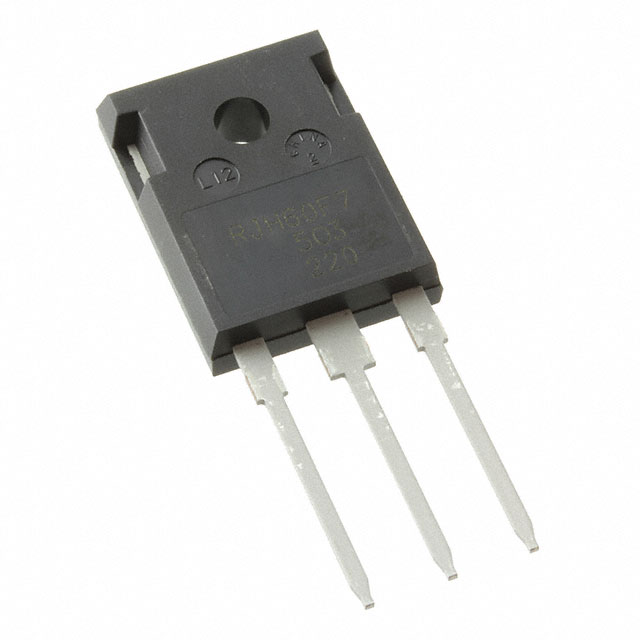

Image is for reference only , See Product Specifications

IRG4PC40UD-EPBF

Manufacturers:	Infineon Technologies
Product Category:	Transistors - IGBTs - Single
Data Sheet:	IRG4PC40UD-EPBF
Description:	IGBT 600V 40A 160W TO247AD
RoHS status:	RoHS Compliant

Product Description
Customer Reviews

Attribute	Attribute Value
Manufacturer	Infineon Technologies
Product Category	Transistors - IGBTs - Single
Series	-
IGBT Type	-
Packaging	Bulk
Input Type	Standard
Gate Charge	100nC
Part Status	Not For New Designs
Power - Max	160W
Mounting Type	Through Hole
Package / Case	TO-247-3
Test Condition	480V, 20A, 10Ohm, 15V
Switching Energy	710µJ (on), 350µJ (off)
Td (on/off) @ 25°C	54ns/110ns
Operating Temperature	-55°C ~ 150°C (TJ)
Supplier Device Package	TO-247AC
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 20A
Reverse Recovery Time (trr)	42ns
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	160A
Voltage - Collector Emitter Breakdown (Max)	600V
