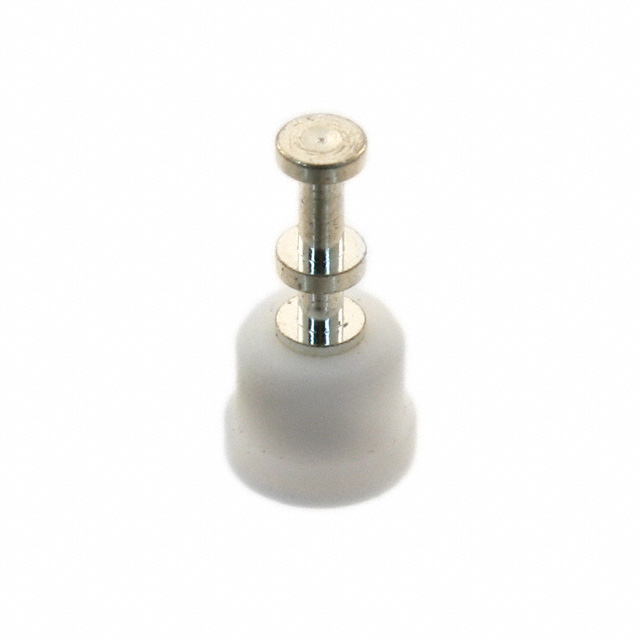

Image is for reference only , details as Specifications

2506-4-00-50-00-00-07-0

Manufacturers:	Mill-Max Manufacturing Corp.
Product Category:	Terminals - Turret Connectors
Data Sheet:	2506-4-00-50-00-00-07-0
Description:	TERM TURRET SINGLE L=3.96MM
RoHS status:	RoHS Compliant

Product Description
Customer Reviews

Attribute	Attribute Value
Manufacturer	Mill-Max Manufacturing Corp.
Product Category	Terminals - Turret Connectors
Series	2506
Insulation	Non-Insulated
Part Status	Active
Termination	Swage
Mounting Type	Through Hole
Terminal Type	Single End
Contact Finish	Tin-Lead
Board Thickness	0.125" (3.18mm)
Flange Diameter	0.125" (3.18mm)
Staking Side ID	0.043" (1.09mm)
Staking Side OD	0.062" (1.57mm)
Contact Material	Brass Alloy
Insulation Color	-
Length - Overall	0.303" (7.70mm)
Number of Turrets	Single
Length - Above Board	0.156" (3.96mm)
Length - Below Flange	0.147" (3.73mm)
Material - Insulation	-
Diameter - Turret Head	0.093" (2.36mm)
Mounting Hole Diameter	0.067" (1.70mm)
Contact Finish Thickness	300.0µin (7.62µm)
