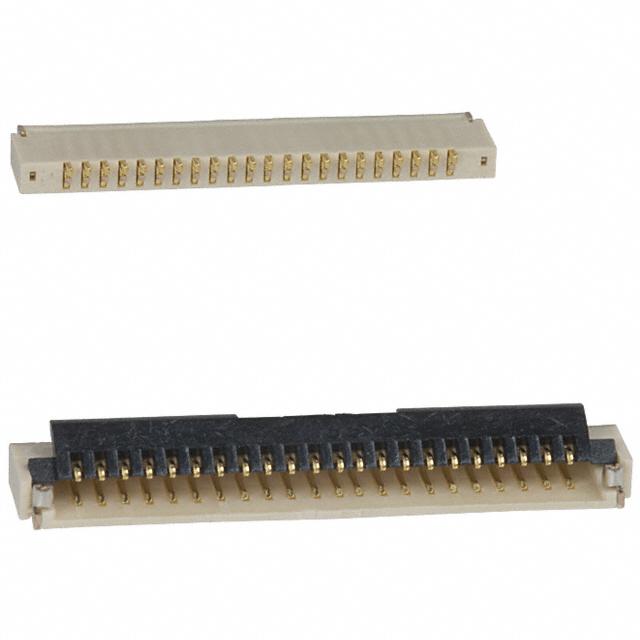

Image is for reference only , details as Specifications
501628-3391
| Manufacturers: | Molex |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | 501628-3391 |
| Description: | CONN FPC BOTTOM 33POS 0.30MM R/A |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.012" (0.30mm) |
| Series | Easy-On 501628 |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Housing Color | - |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | - |
| Cable End Type | Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Dielectric Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 33 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -25°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
New and Original electronic components 501628-3391 from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 84 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.11 | $2.07 | $2.03 |
Minimum: 1
