Image is for reference only , details as Specifications

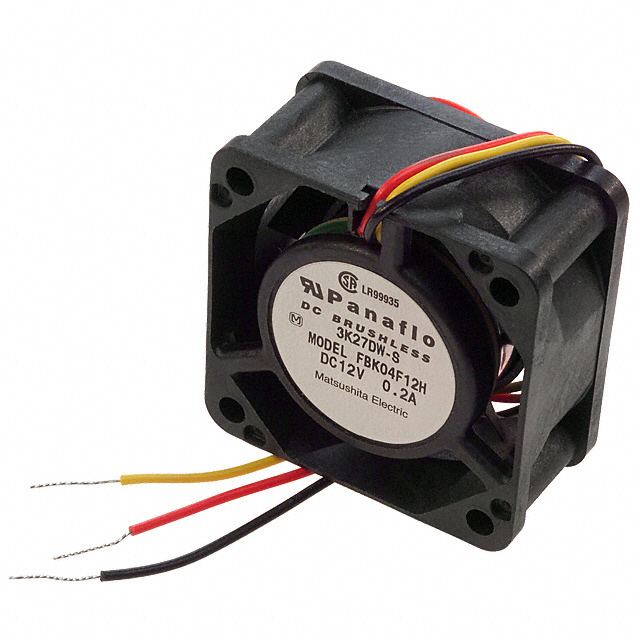

FBK04F12HS
| Manufacturers: | NMB Technologies Corporation |
|---|---|
| Product Category: | DC Brushless Fans (BLDC) |
| Data Sheet: | FBK04F12HS |
| Description: | FAN AXIAL 40X20MM 12VDC WIRE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NMB Technologies Corporation |
| Product Category | DC Brushless Fans (BLDC) |
| RPM | 7500 RPM |
| Noise | 33.0 dB(A) |
| Width | 20.00mm |
| Series | FBK |
| Weight | 0.088 lb (39.92 g) |
| Air Flow | 6.7 CFM (0.188m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Approvals | UL |
| Part Status | Obsolete |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 1.80W |
| Voltage Range | 7 ~ 13.8VDC |
| Static Pressure | 0.260 in H2O (64.8 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 40mm L x 40mm H |
| Ingress Protection | - |
| Current Rating (Amps) | 0.150A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
New and Original electronic components FBK04F12HS from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 60 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
