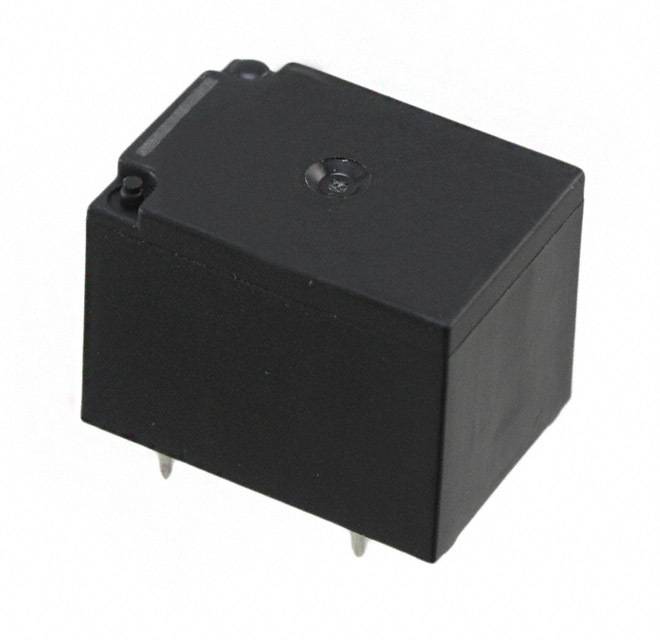

Image is for reference only , details as Specifications
JR1AF-DC24V
| Manufacturers: | Panasonic Electric Works |
|---|---|
| Product Category: | Power Relays, Over 2 Amps |
| Data Sheet: | JR1AF-DC24V |
| Description: | RELAY GEN PURPOSE SPST 16A 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Product Category | Power Relays, Over 2 Amps |
| Series | JR |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | - |
| Coil Current | 22.0mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 10ms |
| Release Time | 2ms |
| Mounting Type | Through Hole |
| Coil Insulation | - |
| Coil Resistance | 1.1 kOhms |
| Contact Material | Silver Alloy |
| Switching Voltage | 250VAC, 30VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -50°C ~ 70°C |
| Contact Rating (Current) | 16A |
New and Original electronic components JR1AF-DC24V from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 83 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
