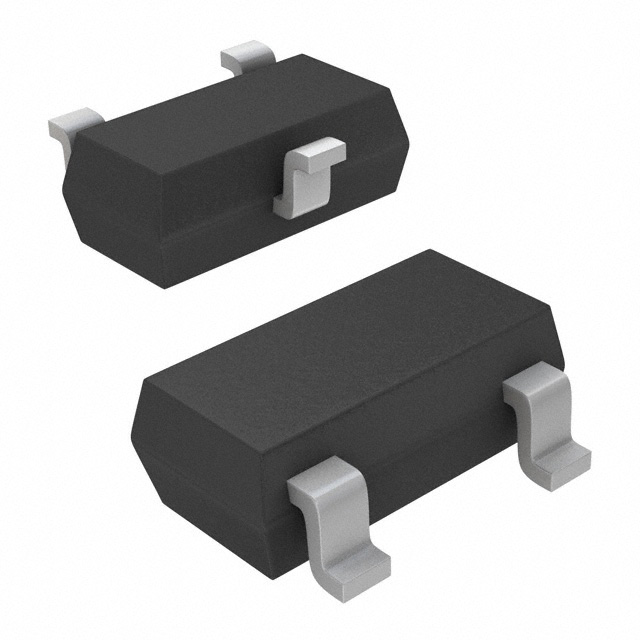

Image is for reference only , details as Specifications
BAV99
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Diodes - Rectifiers - Arrays |
| Data Sheet: | BAV99 |
| Description: | DIODE ARRAY GP 80V 200MA SOT23-3 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Diodes - Rectifiers - Arrays |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Packaging | Digi-Reel® |
| Diode Type | Standard |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Part Number | BAV99 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | SOT-23-3 |
| Reverse Recovery Time (trr) | 3ns |
| Current - Reverse Leakage @ Vr | 100nA @ 80V |
| Voltage - DC Reverse (Vr) (Max) | 80V |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
New and Original electronic components BAV99 from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 94 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
Request Quote
