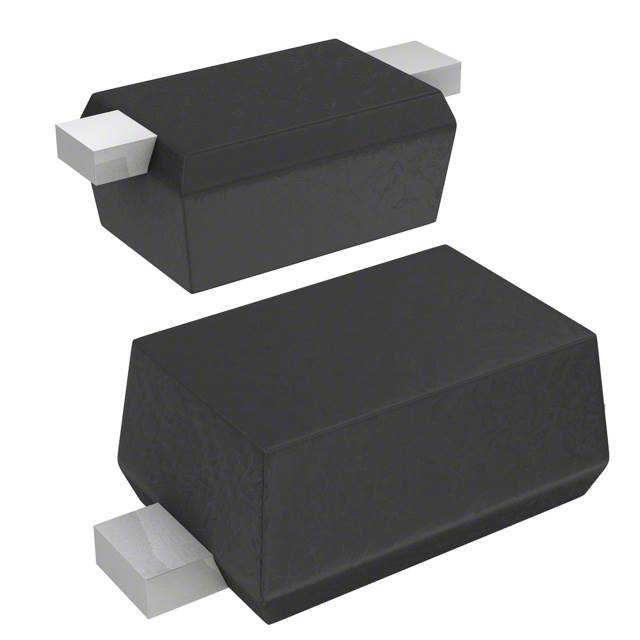

Image is for reference only , See Product Specifications
BAT54KFILM
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Diodes - Rectifiers - Single |
| Data Sheet: | BAT54KFILM |
| Description: | DIODE SCHOTTKY 40V 300MA SOD523 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Diodes - Rectifiers - Single |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Series | - |
| Packaging | Digi-Reel® |
| Diode Type | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Base Part Number | BAT54K |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Supplier Device Package | SOD-523 |
| Reverse Recovery Time (trr) | 5ns |
| Current - Reverse Leakage @ Vr | 1µA @ 30V |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 300mA (DC) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 100mA |
New and Original electronic components BAT54KFILM from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 80907 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
