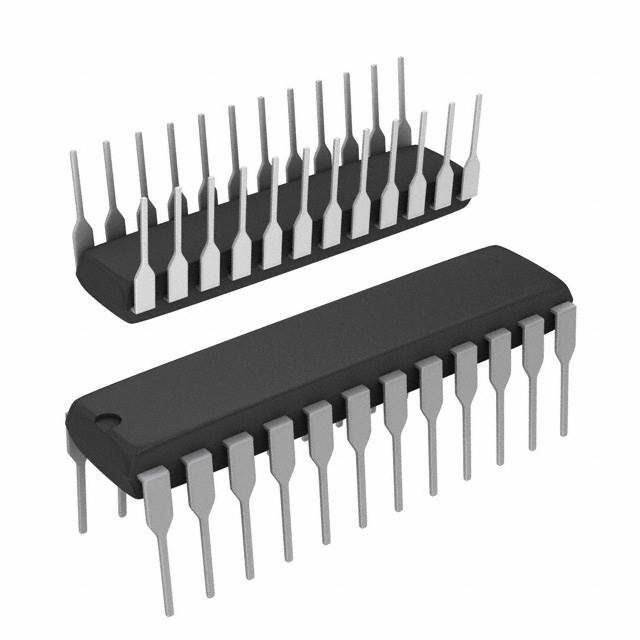

Image is for reference only , details as Specifications
L6225N
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | PMIC - Motor Drivers, Controllers |
| Data Sheet: | L6225N |
| Description: | IC MTR DRV BIPLR 8-52V 20-PWRDIP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | PMIC - Motor Drivers, Controllers |
| Series | STSPIN L62 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Packaging | Tube |
| Technology | DMOS |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Voltage - Load | 8V ~ 52V |
| Step Resolution | - |
| Base Part Number | L6225 |
| Current - Output | 1.4A |
| Voltage - Supply | 8V ~ 52V |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (4) |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Supplier Device Package | 20-PowerDIP |
New and Original electronic components L6225N from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 252 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.49 | $5.38 | $5.27 |
Minimum: 1
