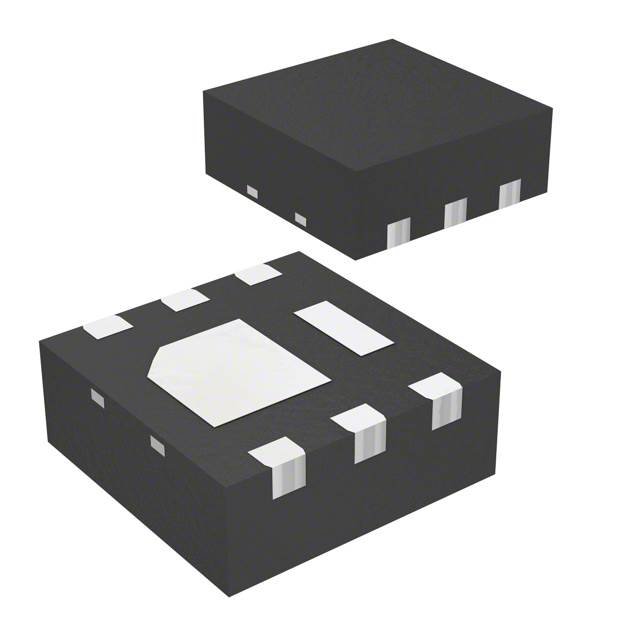

Image is for reference only , See Product Specifications
STL8P2UH7
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | STL8P2UH7 |
| Description: | MOSFET P-CH 20V 8A POWERFLAT22 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | DeepGATE™, STripFET™ VII |
| FET Type | P-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 6-PowerWDFN |
| Base Part Number | STL8 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 22.5mOhm @ 4A, 4.5V |
| Power Dissipation (Max) | 2.4W (Tc) |
| Supplier Device Package | PowerFlat™ (2x2) |
| Gate Charge (Qg) (Max) @ Vgs | 22nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2390pF @ 16V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
New and Original electronic components STL8P2UH7 from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 5544 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
