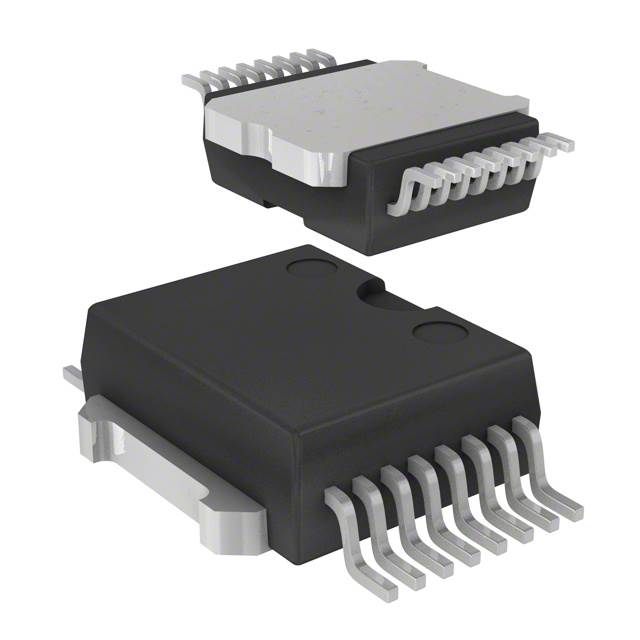

Image is for reference only , See Product Specifications
VNQ05XSP16TR-E
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Data Sheet: | VNQ05XSP16TR-E |
| Description: | IC SSR HI SIDE QUAD 36V PWRSO16 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | PMIC - Power Distribution Switches, Load Drivers |
| Series | - |
| Features | - |
| Interface | On/Off |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Obsolete |
| Switch Type | General Purpose |
| Rds On (Typ) | 110mOhm (Max) |
| Package / Case | 16-PowerBSOP (0.370", 9.40mm Width) |
| Voltage - Load | 5.5V ~ 36V |
| Base Part Number | VNQ05 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Number of Outputs | 4 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Output (Max) | 5A |
| Supplier Device Package | PowerSO-16™ |
| Voltage - Supply (Vcc/Vdd) | Not Required |
New and Original electronic components VNQ05XSP16TR-E from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 86 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
