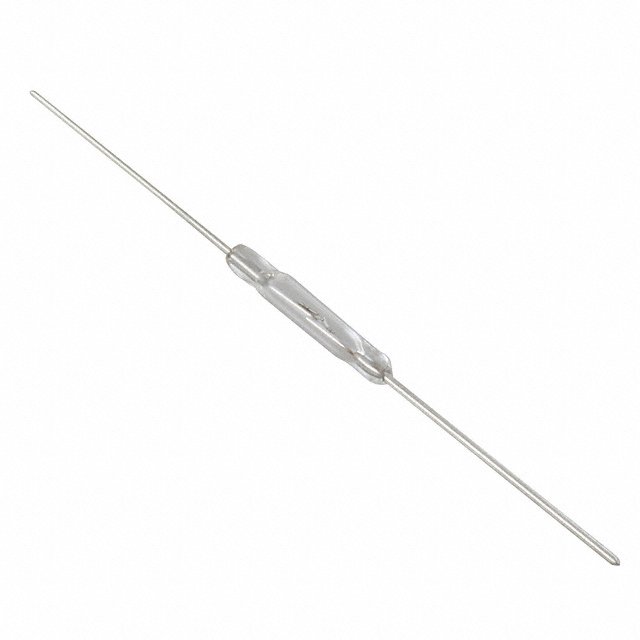

Image is for reference only , details as Specifications
SW GP560/15-20 AT
| Manufacturers: | Standex-Meder Electronics |
|---|---|
| Product Category: | Magnetic, Reed Switches |
| Data Sheet: | SW GP560/15-20 AT |
| Description: | SWITCH REED SPST-NO 1A 125V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Standex-Meder Electronics |
| Product Category | Magnetic, Reed Switches |
| Type | Glass Body |
| Series | GP560 |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Capacitance | 0.2pF |
| Part Status | Active |
| Size - Body | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) |
| Operate Time | 0.6ms |
| Release Time | 0.1ms |
| Mounting Type | Through Hole |
| Operate Range | 10 ~ 50AT |
| Power - Rated | 10VA |
| Release Range | 6 ~ 21AT |
| Current - Carry | 1.5A (AC/DC) |
| Length - Overall | 2.126" (54.00mm) |
| Termination Style | Axial |
| Height Above Board | - |
| Current - Switching | 1A (AC/DC) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Switching AC | 125V |
| Voltage - Switching DC | 100V |
New and Original electronic components SW GP560/15-20 AT from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 2940 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.51 | $0.50 | $0.49 |
Minimum: 1
