Image is for reference only , See Product Specifications

GM0535PFV2-8.GN

Manufacturers: Sunon Fans
Product Category: DC Brushless Fans (BLDC)
Data Sheet: GM0535PFV2-8.GN
Description: FAN AXIAL 35X10MM VAPO 5VDC WIRE
RoHS status: RoHS Compliant
Attribute Attribute Value
Manufacturer Sunon Fans
Product Category DC Brushless Fans (BLDC)
RPM 7500 RPM
Noise 22.0 dB(A)
Width 10.00mm
Series MagLev® GM
Weight 0.023 lb (10.43 g)
Air Flow 6.5 CFM (0.182m³/min)
Fan Type Tubeaxial
Features -
Approvals CE, CUR, TUV, UL
Part Status Obsolete
Termination 2 Wire Leads
Bearing Type Vapo-Bearing™
Power (Watts) 500mW
Voltage Range 3 ~ 6VDC
Static Pressure 0.120 in H2O (29.9 Pa)
Voltage - Rated 5VDC
Lifetime @ Temp. -
Material - Blade Polybutylene Terephthalate (PBT)
Material - Frame Polybutylene Terephthalate (PBT)
Size / Dimension Square - 35mm L x 35mm H
Ingress Protection -
Current Rating (Amps) 0.100A
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
New and Original electronic components GM0535PFV2-8.GN from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. lanka micro cooperation

Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.

In Stock 85 pcs

Refrence Price ($) 1 pcs 100 pcs 500 pcs
$0.00 $0.00 $0.00
Minimum: 1

Request Quote

Fill out the below form and we will contact you as soon as possible

Bargain Finds

6820PL-05W-B79-D00
NMB Technologies Corporation
$0

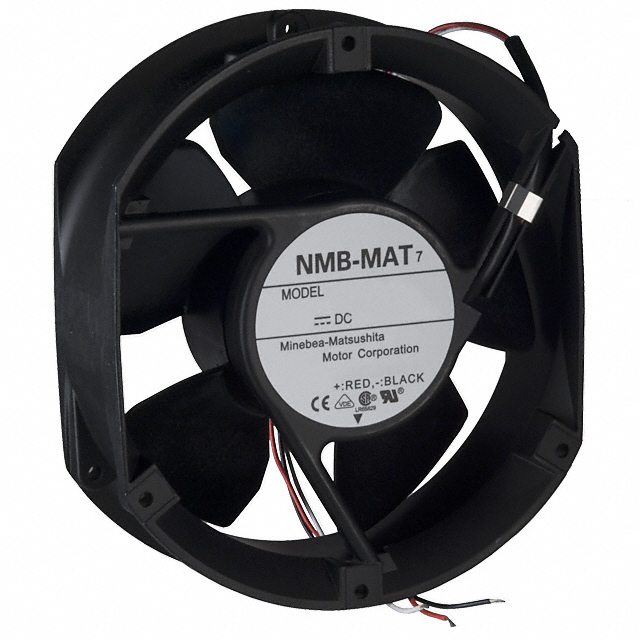

5920PL-04W-B49-D50
