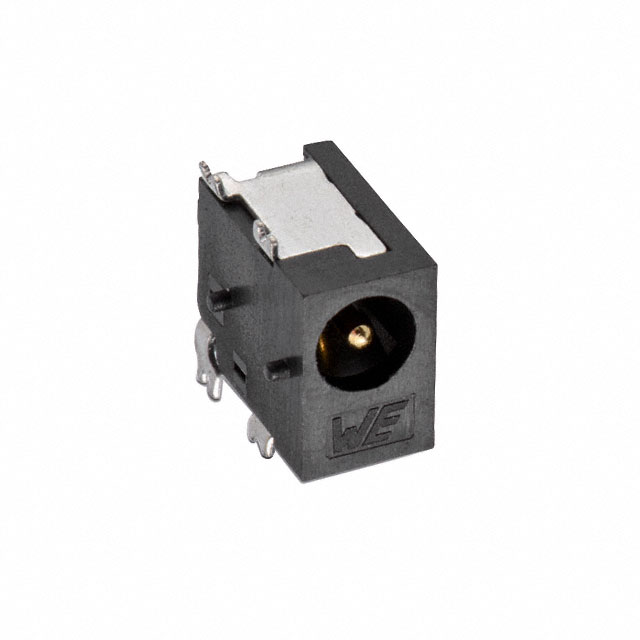

Image is for reference only , details as Specifications
694103107102
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Barrel - Power Connectors |
| Data Sheet: | 694103107102 |
| Description: | CONN PWR JACK 1.05X3.5MM SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Barrel - Power Connectors |
| Gender | Male |
| Series | WR-DC |
| Features | Board Guide |
| Includes | - |
| Packaging | Digi-Reel® |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Thread Size | - |
| Body Material | - |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.041" (1.05mm ID), 0.154" (3.90mm OD) |
| Voltage - Rated | 18VDC |
| Contact Material | Copper Alloy |
| Insulation Color | - |
| Mounting Feature | - |
| Ingress Protection | - |
| Internal Switch(s) | Single Switch, Normally Closed |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Mating Length/Depth | 0.354" (9.00mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material - Plating | Tin |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 1.05mm ID (0.041"), 3.50mm OD (0.138") |
New and Original electronic components 694103107102 from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 641 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Minimum: 1
